SABIX® SD 705 FRNC C1

Continuously flexible halogen-free data cable with improved fire performance

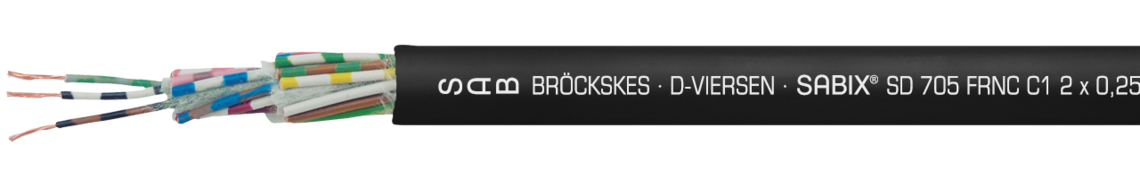

Marking for SABIX® SD 705 FRNC C1 67050225: SAB BRÖCKSKES · D-VIERSEN · SABIX® SD 705 FRNC C1 2 x 0,25 mm² CE

Marking for SABIX® SD 705 FRNC C1 67050225: SAB BRÖCKSKES · D-VIERSEN · SABIX® SD 705 FRNC C1 2 x 0,25 mm² CE

Application

SABIX® SD 705 FRNC C1 is a continuously flexible halogen-free data cable with improved fire performance. Furthermore, it is oil and fuel resistant. This cable is used as festoon cable for polar cranes in nuclear power plants, in rail technology as sensor cable at the vehicle chassis, and cable chain applications with moderate mechanical stress.

Outstanding features

  • halogen-free
  • continuously flexible
  • no flame propagation
  • flame retardant and self-extinguishing
  • oil and fuel resistant
  • good acid and alkalines resistance
  • NF C 32-070 C1

Additional information

For flexible applications in areas with highest fire protection requirements e.g. power plant technology, railway applications.

Construction

Conductor

bare copper strands, extra fine wires

Insulation

SABIX®

Colour code

with reference to DIN 47100

Stranding

in layers

Wrapping

non-woven tape

Sheath material

SABIX® Ultra

Sheath colour

black (RAL 9005)

Conductor

bare copper strands, extra fine wires

Insulation

SABIX®

Colour code

with reference to DIN 47100

Stranding

in layers

Wrapping

non-woven tape

Sheath material

SABIX® Ultra

Sheath colour

black (RAL 9005)

Technical data

Peak operating voltage

< 0,25 mm² = max. 350 V

≥ 0,25 mm² = max. 500 V

Testing voltage

core/core 1500 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

continuously flexible: 15 x d

Radiation resistance

1 x 10⁷ cJ/kg (100 kGy)

Temperature range

fixed laying: -40/+90 °C

flexible application: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 +

VDE 0482-332-3-25 cat. C resp. D, see chapter N „Technical Data“

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 + NF C 32-070 C1

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Toxicity

acc. to NF X 70-100

Oil and fuel resistance

acc. to EN 50264-1 + VDE 0260-264-1

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

< 0,25 mm² = max. 350 V

≥ 0,25 mm² = max. 500 V

Testing voltage

core/core 1500 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

continuously flexible: 15 x d

Radiation resistance

1 x 10⁷ cJ/kg (100 kGy)

Temperature range

fixed laying: -40/+90 °C

flexible application: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 +

VDE 0482-332-3-25 cat. C resp. D, see chapter N „Technical Data“

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 + NF C 32-070 C1

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Toxicity

acc. to NF X 70-100

Oil and fuel resistance

acc. to EN 50264-1 + VDE 0260-264-1

Dimensions

item no. no. of cores x cross section largest single wire-ø outer-ø ± 5% copper figure cable weight ca.
670502142 x 0,14 mm²0,11 mm3,2 mm2,7 kg/km14 kg/km Send inquiry
670503143 x 0,14 mm²0,11 mm3,4 mm4 kg/km17 kg/km Send inquiry
670505145 x 0,14 mm²0,11 mm3,9 mm6,7 kg/km24 kg/km Send inquiry
670507147 x 0,14 mm²0,11 mm4,5 mm9,4 kg/km32 kg/km Send inquiry
670502252 x 0,25 mm²0,11 mm3,5 mm4,8 kg/km18 kg/km Send inquiry
670503253 x 0,25 mm²0,11 mm3,7 mm7,2 kg/km21 kg/km Send inquiry
670504254 x 0,25 mm²0,11 mm4 mm9,6 kg/km26 kg/km Send inquiry
6705102510 x 0,25 mm²0,11 mm6,1 mm24 kg/km60 kg/km Send inquiry
6705122512 x 0,25 mm²0,11 mm6,3 mm28,8 kg/km64 kg/km Send inquiry
6705142514 x 0,25 mm²0,11 mm6,6 mm33,6 kg/km72 kg/km Send inquiry
6705182518 x 0,25 mm²0,11 mm7,3 mm43,2 kg/km90 kg/km Send inquiry
6705252525 x 0,25 mm²0,11 mm8,7 mm60 kg/km117 kg/km Send inquiry
670502342 x 0,34 mm²0,11 mm4,1 mm6,5 kg/km24 kg/km Send inquiry
670505345 x 0,34 mm²0,11 mm5,3 mm16,3 kg/km43 kg/km Send inquiry
670507347 x 0,34 mm²0,11 mm6,3 mm22,8 kg/km62 kg/km Send inquiry
6705103410 x 0,34 mm²0,11 mm7,3 mm32,6 kg/km76 kg/km Send inquiry
6705253425 x 0,34 mm²0,11 mm11,1 mm81,6 kg/km180 kg/km Send inquiry
item no.
no. of cores x cross section
largest single wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
67050214
2 x 0,14 mm²
0,11 mm
3,2 mm
2,7 kg/km
14 kg/km
67050314
3 x 0,14 mm²
0,11 mm
3,4 mm
4 kg/km
17 kg/km
67050514
5 x 0,14 mm²
0,11 mm
3,9 mm
6,7 kg/km
24 kg/km
67050714
7 x 0,14 mm²
0,11 mm
4,5 mm
9,4 kg/km
32 kg/km
67050225
2 x 0,25 mm²
0,11 mm
3,5 mm
4,8 kg/km
18 kg/km
67050325
3 x 0,25 mm²
0,11 mm
3,7 mm
7,2 kg/km
21 kg/km
67050425
4 x 0,25 mm²
0,11 mm
4 mm
9,6 kg/km
26 kg/km
67051025
10 x 0,25 mm²
0,11 mm
6,1 mm
24 kg/km
60 kg/km
67051225
12 x 0,25 mm²
0,11 mm
6,3 mm
28,8 kg/km
64 kg/km
67051425
14 x 0,25 mm²
0,11 mm
6,6 mm
33,6 kg/km
72 kg/km
67051825
18 x 0,25 mm²
0,11 mm
7,3 mm
43,2 kg/km
90 kg/km
67052525
25 x 0,25 mm²
0,11 mm
8,7 mm
60 kg/km
117 kg/km
67050234
2 x 0,34 mm²
0,11 mm
4,1 mm
6,5 kg/km
24 kg/km
67050534
5 x 0,34 mm²
0,11 mm
5,3 mm
16,3 kg/km
43 kg/km
67050734
7 x 0,34 mm²
0,11 mm
6,3 mm
22,8 kg/km
62 kg/km
67051034
10 x 0,34 mm²
0,11 mm
7,3 mm
32,6 kg/km
76 kg/km
67052534
25 x 0,34 mm²
0,11 mm
11,1 mm
81,6 kg/km
180 kg/km

Other dimensions and colours are possible on request.
